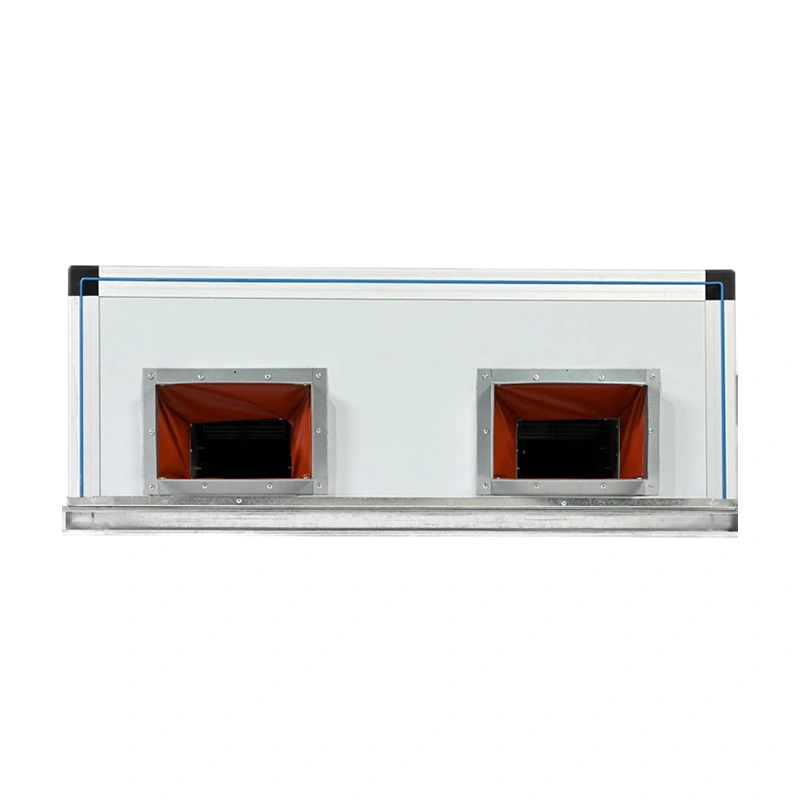

Ceiling-Mounted AHU: Total Indoor Air Solution for Premium Spaces
Product features
Ceiling-mounted air handling units (AHU) integrate cooling, heating, fresh air replacement, air purification, dehumidification, humidification and air circulation.They deliver a one-stop solution for the four core air indicators — temperature, humidity, cleanliness and fresh air volume, meeting the stringent overseas requirements for indoor air quality (IAQ).
Featuring a modular split design, the unit can be hoisted and installed in sections, adapting to elevator and corridor transportation in commercial buildings.It solves the difficulty of equipment entry in large spaces and greatly shortens on-site hoisting and construction time.
The ceiling-mounted AHU adopts a large side-opening service door design.Core components including filters, coils and fans are easily detachable, and maintenance can be completed without professional aerial work equipment, greatly reducing the labor cost of professional maintenance overseas.
Product parameters
| Model | Rated air volume (m³/h) | Power (kW) | Number of fans | Rated current (A) | Noise (dba) | Number of rows of condenser | External residual pressure (Pa) | Heating under fresh air conditions(Water in/out: 60/50℃, Air in: 7℃) | Fresh air cooling(Water in/out: 7/12℃, Air in: 35℃) | Return air heating(Water in/out: 60/50℃, Air in: 15℃) | Return air cooling(Water in/out: 7/12℃, Air in: 27℃) | ||||||||
| Heating cap. (kW) | Water Flow (t/h) | W.P.D (kPa) | Cooling cap. (kW) | Water Flow (t/h) | W.P.D (kPa) | Heating cap. (kW) | Water Flow (t/h) | W.P.D (kPa) | Cooling cap. (kW) | Water Flow (t/h) | W.P.D (kPa) | ||||||||
| KD(X)15 | 1500 | 0.25 | 1 | 0.63 | 60 | 4Rows | 270 | 15.4 | 1.3 | 4 | 15.4 | 3.5 | 12.3 | 12.5 | 1.5 | 4.2 | 8.4 | 1.6 | 6.8 |
| 6Rows | 220 | 20.1 | 1.7 | 5.2 | 20.1 | 3.7 | 15.3 | 18 | 1.9 | 5.6 | 10 | 2.11 | 10.1 | ||||||
| 8Rows | 170 | 26 | 2.2 | 6.2 | 22.2 | 3.8 | 18.6 | 21.2 | 2.3 | 6.9 | 11.3 | 2.62 | 11.8 | ||||||
