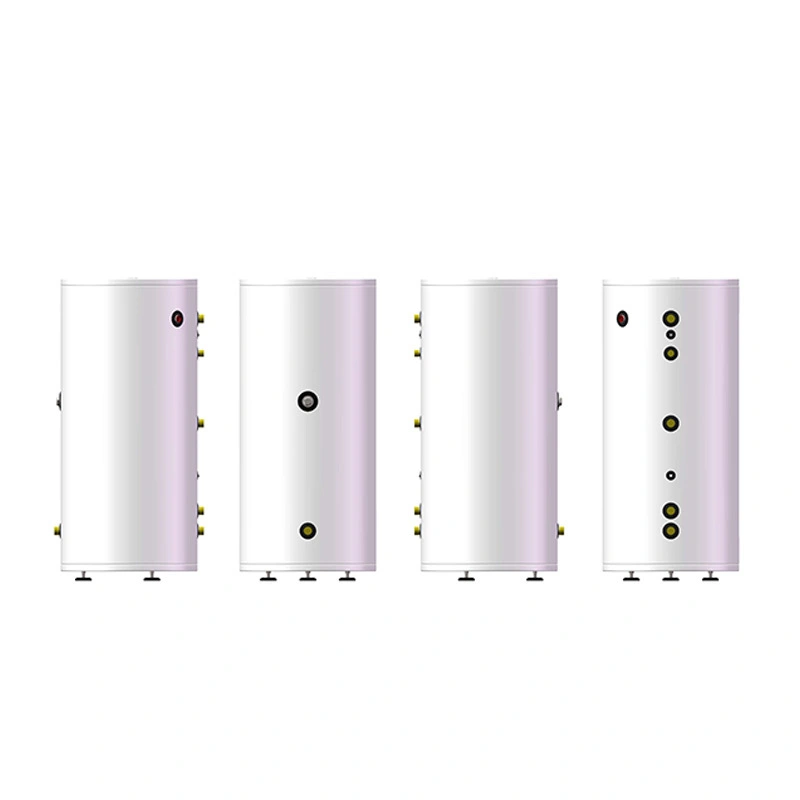

Dual-Coil Tank: Dual-Path Independent Heat Exchange & Energy Saving
Product features
● Dual Independent Heat Exchange for Complex Systems
With precise temperature control and low heat exchange loss, dual-coil water tanks effectively reduce temperature difference fluctuations in system heat exchange.They suit high-end commercial, precision industrial and other scenarios with strict temperature and humidity control requirements, complying with overseas standards for comfort and precision buildings.
● Easy Installation
Compact and lightweight design enables easy transportation via elevators and corridors, with no need for professional hoisting equipment.It solves the pain point of difficult access for large-size equipment in overseas projects, greatly cutting installation time and labor costs.
● Flexible Customization
Tank volume, dual-coil specifications, connection dimensions and materials can be customized to overseas project requirements.It adapts to HVAC systems and installation spaces of different scales, meeting the personalized heat exchange needs of complex commercial and industrial projects.
Product parameters
| Parameter Item | Value / Specification |
| Model | GLB2-200EC |
| Rated Volume (L) | 200 |
| Rated Working Pressure (MPa) | 0.8 |
| Inner Tank Material | SUS304-2B |
| Outer Shell Material | Color Steel Plate |
| Insulation Thickness (mm) | 50 |
| Coil Heat Exchange Area (m簡) | 0.8/0.8 |
| Equivalent Heat Exchange Power (kW) | 20/20 |
| Inner Tank Diameter (mm) | 480 |
| K (mm) | 580 |
| A (mm) | 174 |
| B (mm) | 254 |
| C (mm) | 394 |
| D (mm) | 614 |
| E (mm) | 504 |
| F (mm) | 733 |
| G (mm) | 862 |
| H (mm) | 997 |
| I (mm) | 1116 |
| J (mm) | 1270 |
| L (mm) | 674 |
| M (mm) | 174 |
| Net Weight / Gross Weight (Kg) | 48/55 |
| Packaging Box Size (mm) | 1340670670 |
Mechanical assembly drawing of vertical hot water storage tank with double heat exchange coils, for HVAC hot water projects.
