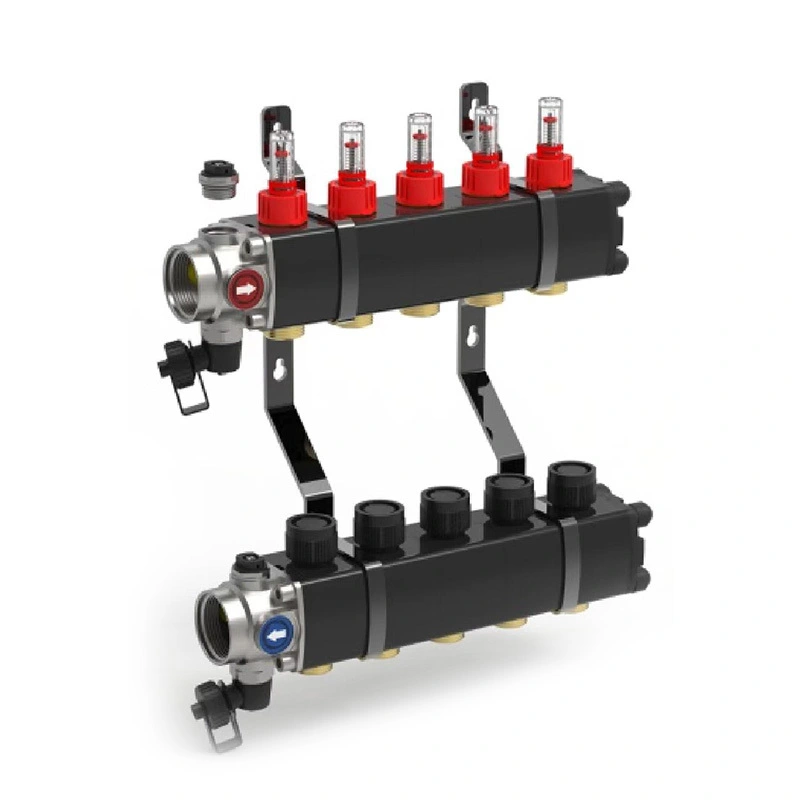

DN32 Manifold with Flow Indicator & Anti-Condensation for Heating
Product features
The internal flow passage of the manifold is optimized for low flow resistance, meeting the high-flow demand of multiple branches at the same time and avoiding becoming a system bottleneck.
To prevent condensation on the pipe wall caused by low‑temperature fluids inside (such as air conditioning chilled water and solar return water), thickened insulation layers or integrated electric heating tapes are used.
Each branch of the manifold is typically equipped with an integrated glass‑window flow meter.
The nominal diameter of the main pipe determines the size of the connected pipelines and the passage capacity of the main flow.
Product parameters
| Item | Specification |
| Manifold Type | Nylon Water Manifold |
| Nominal Diameter of Main Pipe | DN50 (Actual inner bore larger than DN50) |
| Main Thread Specification | G1" internal thread on both ends |
| Supply Water Header | Hexagon adjustable valve cartridge; air vent and drain fitted at the end loop |
| Return Water Header | Thermostatic bellows valve cartridge, equipped with handwheel (M30×1.5mm thread), compatible with thermal actuator, 3mm thermostatic stroke; air vent and drain fitted at the end loop |
| Branch Pipe Parameter | G3/4" branch thread, 50mm center-to-center distance between adjacent branches |
| Optional Circuit Quantity | 2 to 8 circuits |
