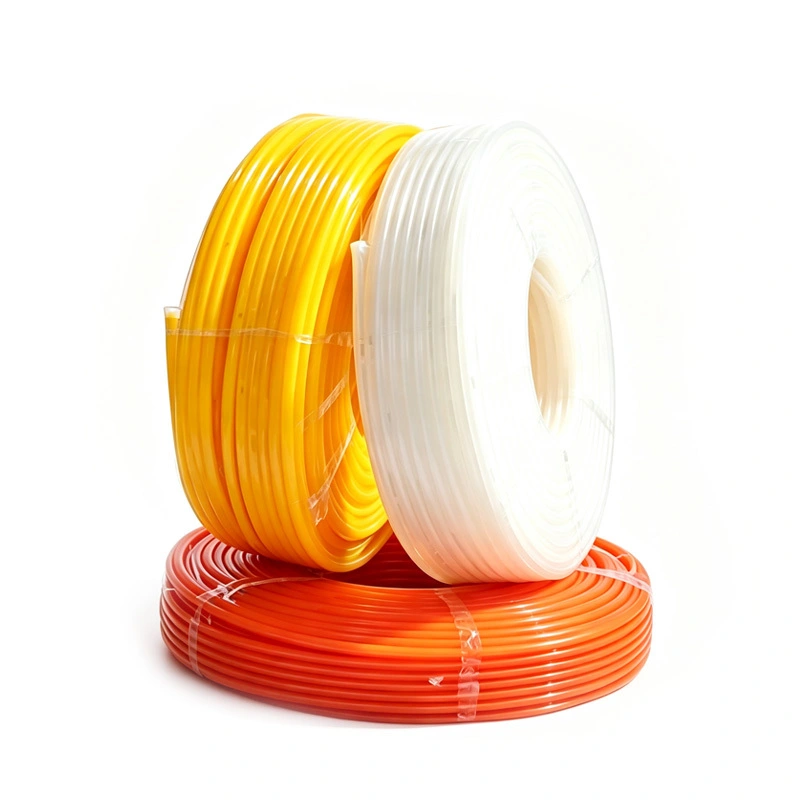

PEX-AL-PEX Pipe: 5-Layer Protection, Lifetime Performance
Product features
PEX-aluminum composite pipe features an ultra-wide temperature resistance range:long-term operating temperature from -40℃ to 95℃, with short-term temperature resistance up to 110℃.
The middle aluminum layer significantly improves pressure resistance, ensuring system safety. It provides a complete oxygen barrier to protect metal components in the system.The aluminum layer also restricts thermal expansion and contraction, maintaining excellent dimensional stability.
The inner and outer PEX layers are non-toxic, odorless, bacteria‑resistant, and can withstand corrosion from chemicals and microorganisms in water.
Product parameters
| Item | Specification |
| Maximum Continuous Operating Temperature | 95°C (Long-term continuous service) |
| Short-term Temperature Resistance | 110°C (Intermittent service or abnormal working conditions) |
| Minimum Operating Temperature | -40°C |
| Maximum Working Pressure | 10 bar (1.0 MPa) under normal-temperature clean water, PN10 rating |
| Burst Pressure (16mm pipe) | ≥ 6.0 MPa (23±2°C), tested for 60 seconds at 23°C |
| Long-term Hydrostatic Pressure Resistance (16mm pipe) | ≥ 2.3 MPa (80±2°C), 10-hour test at 80°C |
| Working Pressure (16mm pipe) | 10 MPa (23±2°C), tested at 23°C |
| Sizes | De16 / De20 / De25 |
