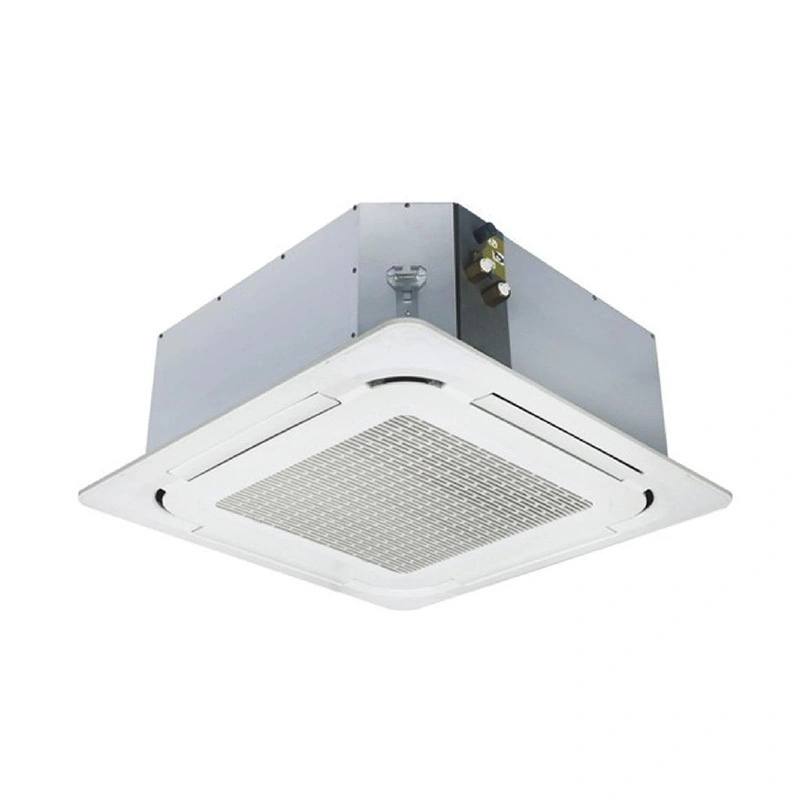

The Ultimate Comfort Cassette: Ultra-Homogeneous Air Diffusion FCU 1

The Ultimate Comfort Cassette: Ultra-Homogeneous Air Diffusion FCU 2

The Ultimate Comfort Cassette: Ultra-Homogeneous Air Diffusion FCU

8-Way Cassette Fan Coil Unit

GTGLOBE FP‑85KM‑8W 8‑way cassette fan coil unit delivers draught‑free, even air distribution for premium heating & cooling. With multi‑angle low‑speed air supply, it eliminates cold‑air blowing and temperature stratification while running at low noise. CE‑certified and OEM‑supported, this ceiling‑embedded FCU is ideal for high‑end residential and light‑commercial HVAC projects.

Certification:

Start Port:

Shanghai Port/Ningbo Port

Delivery Time:

1-100 (pieces) 20 days，＞100(pieces): communication and negotiation

Payment:

T/T

MOQ:

100

Model:

FP-85KM-8W

Brand:

GTGLOBE/OEM

Inquiry

Write a Review

Product features

● Beyond-standard "No-Draft" Comfort Solution: It upgrades from ordinary equipment to a luxury-grade component that enhances project positioning and meets the most demanding user experience, serving as a hallmark of high-end projects.

● Advanced Omnidirectional Airflow Mixing & Diffusion Technology: The 8-way air outlet cassette fan coil unit adopts multi-angle, low-wind-speed air supply, completely eliminating direct cold drafts and creating an extremely stable, uniform "invisible" indoor climate.

● Ultimate Temperature Uniformity & Quiet Operation: It resolves temperature stratification in large spaces and high-ceiling areas, while maintaining extremely low background noise, making it ideal for premium commercial and high-end residential applications.

Product parameters

	Model	FP-85KM-8W
	Air volume (m³/H)	850
	Cooling capacity (KW/H)	4.5
	Heating capacity (KW/H)	6.7
	Motor power (W)	72
	Operating current（A）	0.32
	power supply	220V 50Hz
	Number of fans	1
	Noise dB(A)	39/40/43
	Control method	Remote control or wire control
	Water flow（m3/h）	0.86
	water resistance（KPa）	18
	Drain pipe size（mm）	φ26
Water pipe size	Enter(inch)	ZG¾“
Water pipe size	Out(inch)	ZG¾“
	Connection method	External wire connection
	Unit net size(mm)	820820290
	Unit weight(KG)	26.2
	package weight	29.2
Panel	L （mm）	820
	P（mm）	820
	H（mm）	30
	Outer packaging size(mm)	890890370

Application Scenarios

Our 8-way ceiling cassette fan coil unit is specially designed for spaces requiring even temperature distribution and aesthetic ceiling integration. With 8-direction air supply to eliminate air dead zones, it is the preferred hydronic air conditioning terminal for medium & large indoor areas.

Catering & Leisure Venues

Cafes, restaurants, tea houses, SPA & fitness centers. Concealed installation keeps ceiling tidy, reliable condensate drain system avoids water leakage risk.

Hotels & Resorts

Lobbies, banquet halls, executive suites, leisure areas. Flush-mounted design matches interior decoration, low noise ensures guest comfort.

Commercial Premises

Office open areas, meeting rooms, shopping mall shops, showrooms, exhibition halls. Wide air coverage delivers consistent room temperature for crowded spaces.
