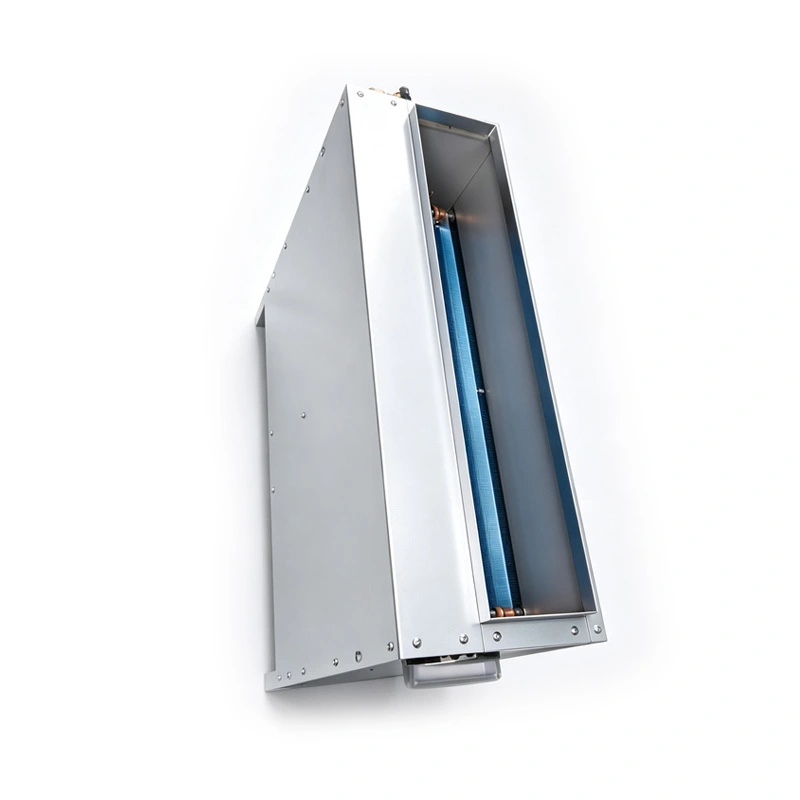

Vertical Concealed FCU: Perimeter Zone Cooling & Heating
Product features
Installation of vertical concealed fan coil units does not occupy the ceiling and preserves headroom height.It saves valuable ceiling space for the project, lowers building height requirements, and creates a more open visual space — especially ideal for renovation projects with limited floor height.
The fan coil unit is flexibly concealed and perfectly integrated.Hidden inside walls or custom cabinets, only the streamlined air vents are exposed, blending seamlessly with interior design and preserving a clean, unified wall appearance.
Easy maintenance and controllable costs.The service access panel is typically installed on the indoor wall, so maintenance can be carried out without accessing the ceiling. This makes operation more straightforward and convenient, while reducing long-term maintenance costs.
Product parameters
| Model | FP-34WAB |
| Cooling Ca. (Water in 7℃ )(KW) | 1.85 |
| Heating Ca. (Water in 60℃ )(KW) | 2.78 |
| Power Input(W) | 36 |
| Air flow(m³/h) | 357 |
| Motor Power(w) | 25 |
| Noise dB(A) | 37 |
| Static pressure | 30Pa |
| Water flow(m³/h) | 0.32 |
| Net size(mm) | 450*381*210 |
| lron Wheel Weight(KG) | 10.9 |
| ABS Weight(KG) | 12.3 |
| Package size(mm) | 790*520*250 |
