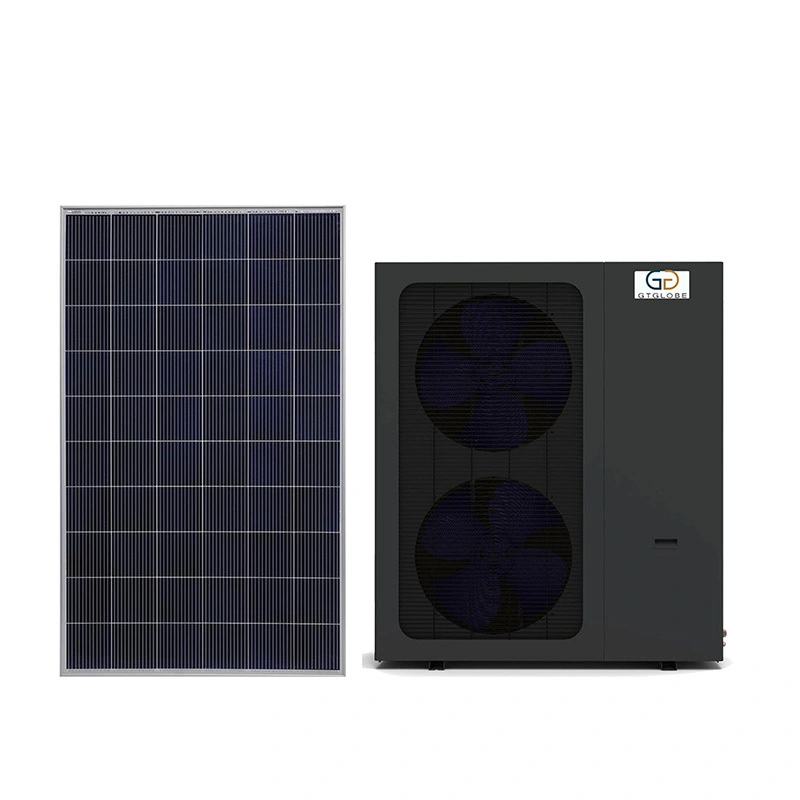

Solar‑Ready R290 DC Inverter Monobloc Air‑to‑Water Heat Pump GT‑02/BPKTR2‑F 1

Solar‑Ready R290 DC Inverter Monobloc Air‑to‑Water Heat Pump GT‑02/BPKTR2‑F 2

Solar‑Ready R290 DC Inverter Monobloc Air‑to‑Water Heat Pump GT‑02/BPKTR2‑F

GTGLOBE GT‑02/BPKTR2‑F series is solar‑ready R290 DC inverter monobloc heat pump. Supporting PV direct‑drive, it maximises solar power utilisation to cut grid electricity consumption. Using natural low‑GWP R290 refrigerant, it complies with EU F‑Gas Directive and reaches A+++ energy rating. Built‑in smart energy manager auto‑adjusts performance for heating, cooling and DHW, stable operation down to ‑25°C. CE‑certified and OEM available for residential & light‑commercial projects.

Certification:

Start Port:

Shanghai Port/Ningbo Port

Delivery Time:

1-50(pieces): 15days，＞50 (pieces): communication and negotiation

Payment:

T/T

MOQ:

Model:

GT-02/BPKTR2-F

Brand:

GTGLOBE/OEM

Inquiry

Write a Review

Product features

● Economy & Energy Independence

This heat pump integrates photovoltaic direct-drive with DC inverter technology, maximizing the use of solar energy to drastically reduce or even eliminate reliance on the grid. It delivers substantial long-term savings on electricity bills and achieves true energy autonomy.

● Eco-Friendliness & Future Compliance

Engineered for sustainable, low-carbon heating, our R290 DC inverter solar-integrated monobloc heat pump utilizes natural refrigerant R290. It not only meets but exceeds the world's most stringent environmental regulations, including the EU F-Gas Directive, making it a future-proof investment.

● Intelligent Control & Effortless Comfort

The built-in smart energy manager automatically optimizes system performance based on solar generation and household demand. This ensures 24/7 comfort with minimal user intervention, offering a worry-free heating and cooling experience.

Product parameters

Model

Unit

GT-02/BPKTR2

GT-03/BPKTR2

GT-04/BPKTR2

GT-05/BPKTR2

GT-06/BPKTR2

GT-03/BPKTR2-S

GT-04/BPKTR2-S

GT-05/BPKTR2-S

GT-06/BPKTR2-S

GT-08/BPKTR2-S

GT-13/BPKTR2-S

GT-18/BPKTR2-S

Power Supply

V/Hz/Ph

220-240/50-60/1

380-415/50-60/3N

Heating Condition-Ambient temperature（DB/WB）: 7/6℃，Water temperature（In/Out）: 30/35℃

Heating Capacity Range

2.76 / 6

4.2~9.8

5.4~12.2

6.8~15.2

8.2~18.2

4.1~9.2

5.4~12.2

6.8~15.2

8.2~18.2

8.8~26

13.3~38

15.7~54

Heating power Input Range

0.57 / 1.33

0.87~2.18

1.11~2.7

1.39~3.3

1.69~4

0.85~2.03

1.11~2.75

1.39~3.45

1.69~3.99

1.87~5.89

2.8~8

3.48~12

COP

W/W

4.5 / 4.83

4.48~4.82

4.52~4.85

4.6~4.9

4.55~4.86

4.51~4.82

4.43~4.85

4.40~4.90

4.56~4.86

4.41~4.7

4.46~4.75

4.3~4.5

Heating Condition-Ambient temperature（DB/WB）: 7/6℃，Water temperature（In/Out）: 47/55℃

Heating Capacity Range

2.6 / 5.8

3.9~9.0

5.2~11.5

6.5~14.3

7.8~17.1

3.9~8.7

5.2~11.5

6.5~14.3

7.8~17.1

8.1~24.4

12~36.1

15~50

Heating power Input Range

0.74 / 2.0

1.13~3.14

1.50~3.97

1.87~4.96

2.26~5.97

1.13~3.01

1.50~3.97

1.87~4.96

2.26~5.97

2.45~9

3.6~10.58

4.7~15.75

COP

W/W

2.89 / 3.47

2.87~3.45

2.87~3.46

2.88~3.48

2.86~3.45

2.87~3.46

2.88~3.48

2.86~3.45

2.7~3.3

2.89~3.41

2.89~3.3

DHW Condition-Ambient temperature（DB/WB）: 7/6℃，Water temperature（Start/End）: 15/55℃

Heating Capacity Range

2.5 / 5.7

3.8~8.6

5.1~11.3

6.4~14.1

7.6~16.8

3.8~8.6

5.1~11.3

6.4~14.1

7.6~16.8

8.0~23

12~35

15~50

Heating power Input Range

0.56 / 1.52

0.863~2.30

1.15~3.00

1.44~3.73

1.72~4.48

0.863~2.30

1.15~3.00

1.44~3.73

1.72~4.48

1.9~6.2

2.84~8.29

3.48~11.63

COP

W/W

3.75 / 4.45

3.73~4.4

3.76~4.43

3.78~4.45

3.75~4.42

3.73~4.4

3.76~4.43

3.78~4.45

3.75~4.42

3.7~4.2

3.7~4.22

3.6~4.3

Cooling Condition-Ambient temperature（DB/WB）: 35/24℃，Water temperature（In/Out）: 12/7℃

Cooling Capacity Range

2.0 / 4.5

3.08~6.7

4.05~8.8

5.57~12.1

6.08~13.2

3.08~6.7

4.05~8.8

5.57~12.1

6.08~13.2

7.6~22

9.7~29

13.4~41

Cooling power Input Range

0.588 / 1.61

0.905~2.39

1.19~3.16

1.64~4.32

1.79~4.75

0.905~2.39

1.19~3.16

1.64~4.32

1.79~4.75

2.38~7.6

3.2~9.35

4.32~13.23

EER

W/W

2.79 / 3.4

2.8~3.4

2.78~3.38

2.8~3.4

2.78~3.39

2.8~3.4

2.78~3.38

2.8~2.4

2.78~3.39

2.89~3.2

2.7~3.1

2.9~3.1

Max. Power Input

2.5

3.7

4.8

5.7

6.8

3.7

4.8

5.7

6.8

Max. Current Input

16.5

6.1

7.8

9.2

11.1

30.4

SCOP Level (35°C)

A+++

Working Ambient Temperature

℃

-25~43

Operating Water Temperature

℃

7~70

Refrigerant

R290

Compressor

Type -Quantity/System

Twin Rotary -1

Scroll Type

Water Side Heat Exchanger

Type

Plate Heat Exchanger

Water Pressure Drop

kPa

Piping Connection

inch

G1"

G1-1/4"

G1-1/2"

Allowable Water Flow

m³/h

1.1

1.6

2.1

2.61

3.13

1.6

2.1

2.61

3.13

4.5

6.5

9.3

Noise Level

dB(A)

Net Size(LxDxH)

994×525×805

1087×510×890

1087×510×1470

1087×510×890

1087×510×1470

1280×480×1490

1269×470×1721

2100×480×1490

Packing Size(LxDxH)

1039×535×845

1127×550×1030

1127×550×1610

1127×550×1030

1127×550×1610

1395×530×1600

1379×530×1840

2300×530×1600

Net Weight

105

142

150

105

142

150

160

202

280

Gross Weight

104

114

153

161

104

114

153

161

172

217

295

Product Details

R290GT-03（1）

R290GT-03（23）

R290GT-03（9）

R290GT-03（3）

R290GT-03（25）

R290GT-03（8）

R290GT-03（4）

R290GT-03（27）

R290GT-03（7）

R290GT-03（2）

R290GT-03（24）
