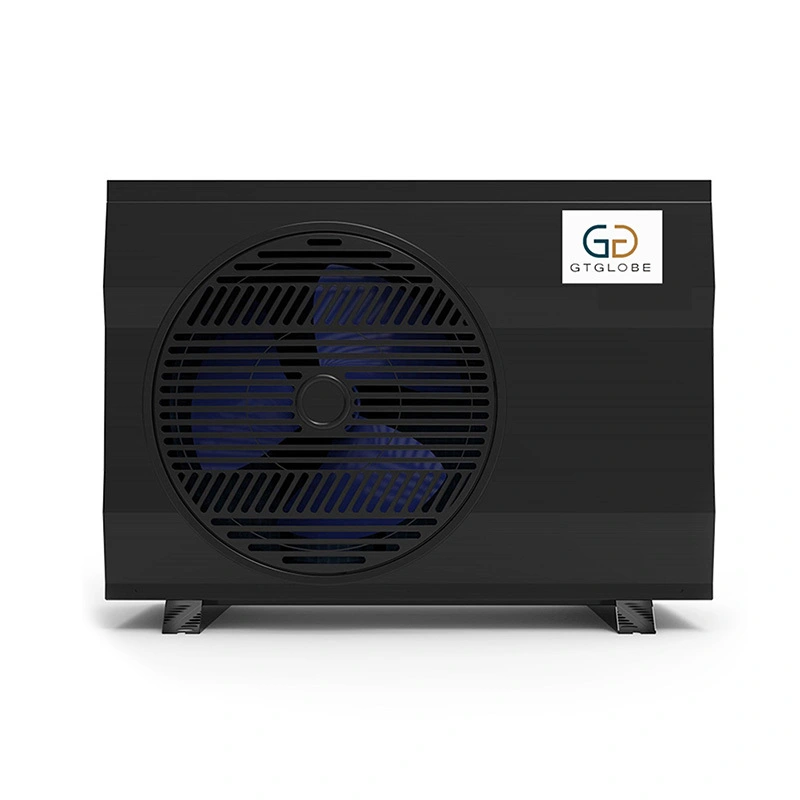

Durable R32 DC Inverter Pool Heat Pump with Constant Temperature 1

Durable R32 DC Inverter Pool Heat Pump with Constant Temperature 2

Durable R32 DC Inverter Pool Heat Pump with Constant Temperature

GTGLOBE GT‑007TD1 series R32 DC inverter pool heat pump delivers both heating & cooling for swimming pools. Adopting variable‑speed compressor and corrosion‑resistant titanium heat exchanger, it achieves high seasonal COP to cut power bills. With low‑GWP R32 refrigerant, CE certification and wide working range ‑15~43℃, it guarantees stable all‑weather pool temperature. OEM is available for residential and light‑commercial pool projects.

Certification:

Start Port:

Shanghai Port/Ningbo Port

Delivery Time:

1-50（pieces）: 15days , ＞50(pieces): communication and negotiation

Payment:

T/T

MOQ:

Model:

GT-007TD1

Brand:

GTGLOBE/OEM

Inquiry

Write a Review

Product features

● Efficient Pool Heating: DC inverter technology adjusts the compressor speed in real time to meet pool heating demands, significantly improving the seasonal COP and reducing electricity costs.

● Environmentally Responsible: The pool heat pump uses R32 refrigerant with a low Global Warming Potential (GWP), supporting compliance with international environmental standards.

● All-Weather Reliability: The pool heat pump is designed to maintain stable performance under various outdoor conditions, ensuring consistent pool temperature throughout the swimming season.

Product parameters

Model	Unit	GT-007TD1	GT-010TD1	GT-013TD1	GT-017TD1	GT-021TD1	GT-030TD1	GT-030TD3	GT-035TD3
Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity	kW	7.6~1.7	9.5~2.3	13~3.0	17~3.8	21~4.8	28~6.8	28~6.8	35~8.8
Power Input	kW	1.12~0.11	1.40~0.15	1.91~0.19	2.5~0.24	3.09~0.30	4.12~0.43	3.97~0.43	5.15~0.56
COP	W/W	15.8~6.8	15.8~6.8	16~6.8	15.8~6.8	15.8~3.8	15.8~6.8	15.8~6.8	15.8~6.8
Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity	kW	6.1~1.4	7.6~1.9	9.8~2.3	13.5~3	16.5~3.8	23~5.5	23~5.5	25.5~6.4
Power Input	kW	1.24~0.18	1.55~0.25	1.96~0.30	2.76~0.39	3.37~0.5	4.7~0.72	4.7~0.72	5.2~0.84
COP	W/W	7.6~4.9	7.6~4.9	7.6~5	7.6~4.9	7.6~4.9	7.6~4.9	7.6~4.9	7.6~4.9
Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity	kW	4.2~1.0	5.3~1.3	7.2~1.7	9.4~2.1	11.6~2.7	14.9~3.8	14.9~3.8	19.3~4.9
Power Input	kW	1.11~0.15	1.4~0.19	1.89~0.25	2.47~0.31	3.05~0.4	3.92~0.57	3.92~0.57	5.08~0.73
EER	W/W	6.6~3.8	6.7~3.8	6.7~3.8	6.7~3.8	6.7~3.8	6.7~3.8	6.7~3.8	6.7~3.8
General data
Power supply	/	220~240V/1/50	220~240V/1/50	220~240V/1/50	220~240V/1/50	220~240V/1/50	220~240V/1/50	380~415V/3/50	380~415V/3/50
Max Power Input	kW	1.55	1.78	2.2	2.6	3.2	4.45	6.43	6.93
Max Current	A	7.3	8.3	10.2	12	14.7	20.4	7.9	11.3
Water Flow Volume	m3/h	2.5	3.5	4.5	5.5	6.5	9	9	12
Refrigerant	/	R32	R32	R32	R32	R32	R32	R32	R32
Heat Exchanger	/	Titanium	Titanium	Titanium	Titanium	Titanium	Titanium	Titanium	Titanium
Air Flow Direction	/	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal
Kind of defrost	/	by 4 way valve	by 4 way valve	by 4 way valve	by 4 way valve	by 4 way valve	by 4 way valve	by 4 way valve	by 4 way valve
Working Ambient Temperature	℃	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43
Water Proof Level		IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Noise level 1m	dB(A)	39~49	40~52	42~53	43~55	45~56	47~58	47~58	49~59
Noise level 10m	dB(A)	20~29	20~32	22~33	23~35	25~36	27~38	27~38	29~39
Net Weight	kg	42	43	53	54	58	88	88	98
Gross Weight	kg	53	54	64	65	69	99	99	110
Net Size(LxDxH)	mm	864349592	864349592	925364642	925364642	925364642	1084399737	1084399737	1084399737
Packing Size(LxDxH)	mm	930400640	930400640	990435760	990435760	990435760	1146460862	1146460862	1146460862

Product Details

泳池热泵8

泳池热泵1

泳池热泵14

泳池热泵2

泳池热泵7

泳池热泵3

泳池热泵15

泳池热泵10

泳池热泵13

泳池热泵12
